F-4 Phantom II NC

0.00

F-4 Phantom II NC

0.00

Designed by Nick Cara

If you download the free airplane plans and build the F-4 Phantom, please consider sending the designer a donation for all of his hard work and inspiration!

PayPal | nicknac6@gmail.com

Suggested Donation: $10.00

NOTE FROM THE DESIGNER

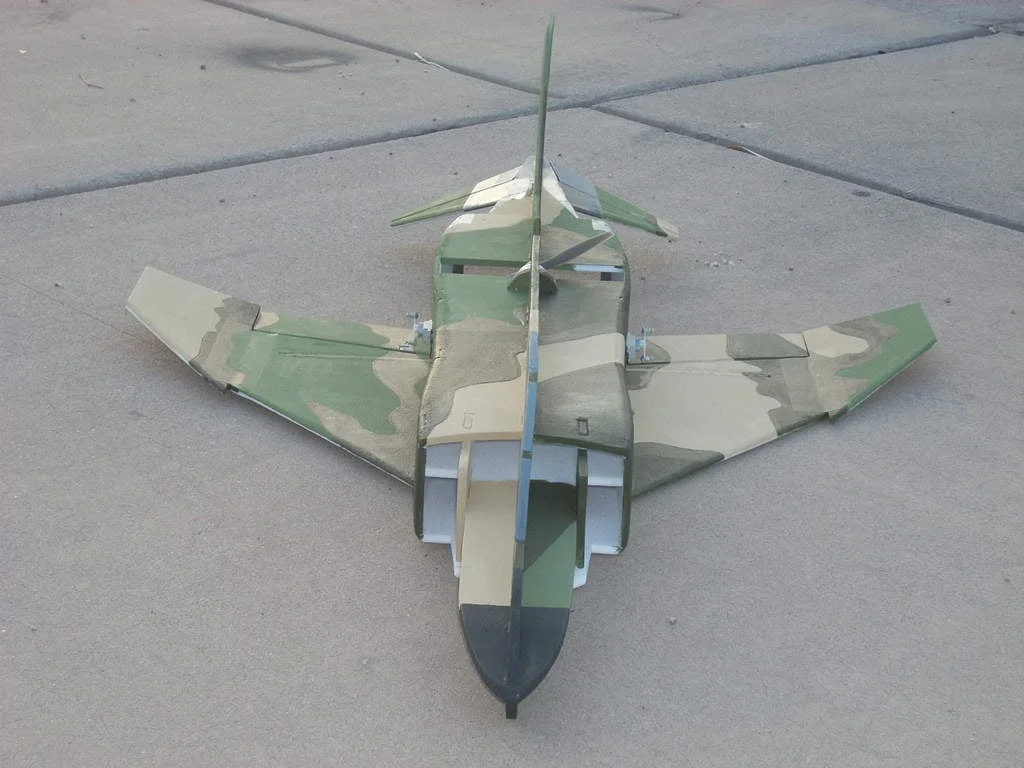

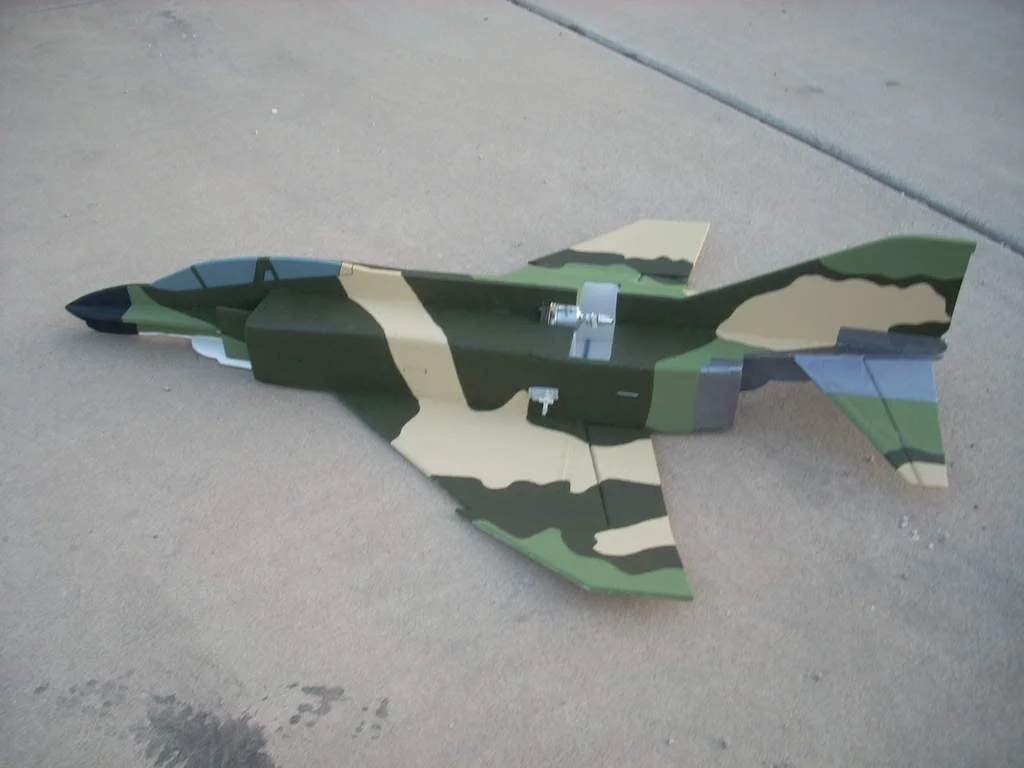

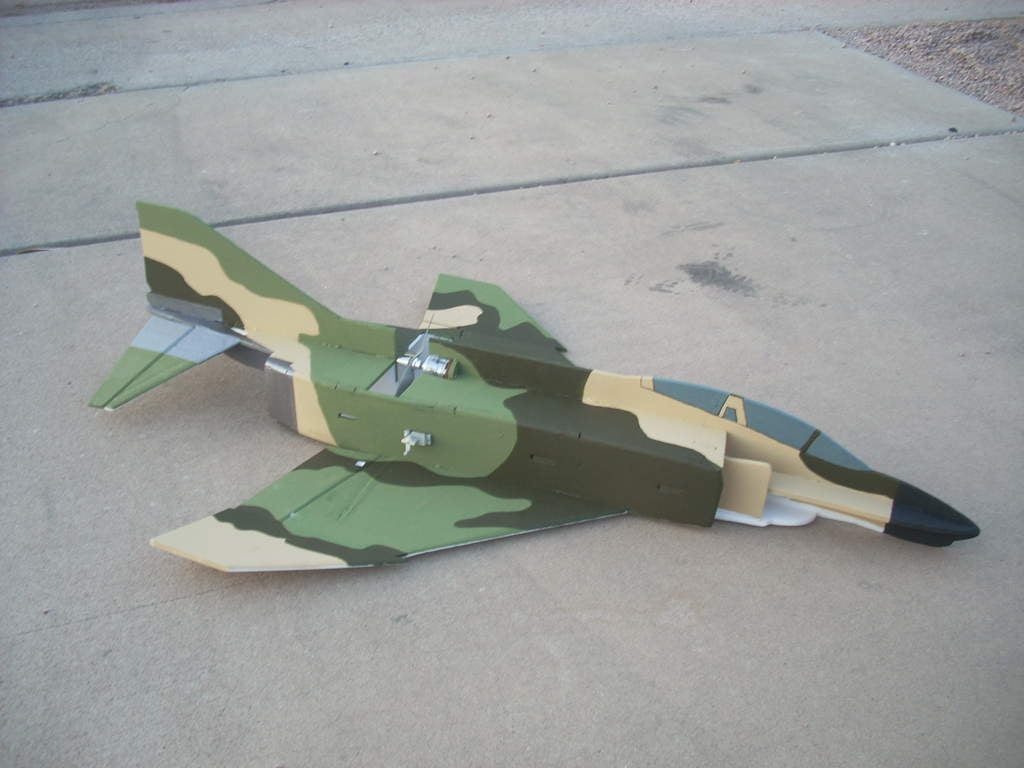

It has a mid-mounted motor, electronics and battery are mounted on a tray which is accessible via an access door underneath. It is built from 6 mm Depron foam, held together with hot glue. I only used Epoxy for the carbon rods. I used just two servos to control all surfaces but you could use a third for separate elevator. An excellent design for a RC airplane parkflyer.

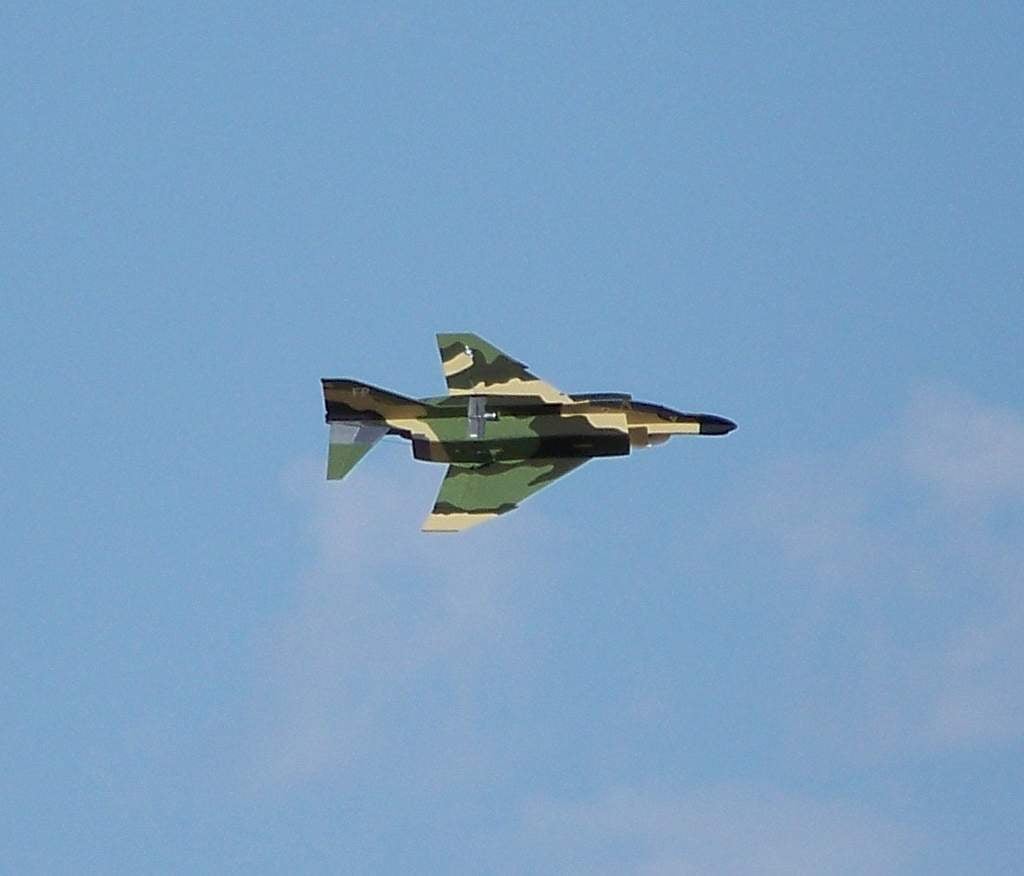

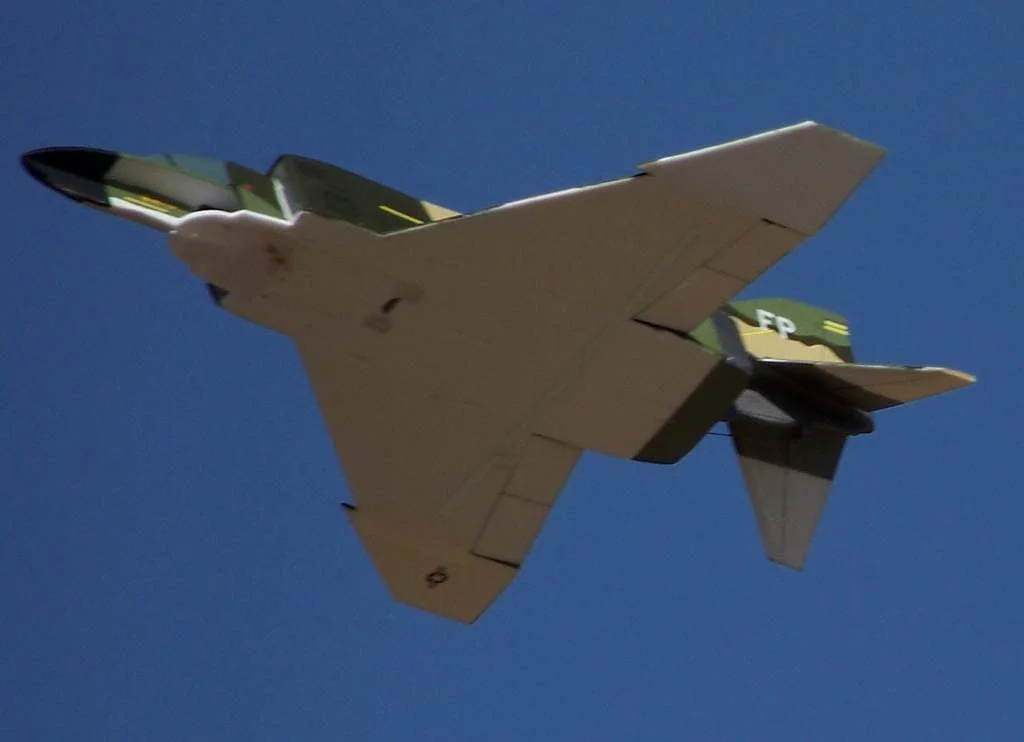

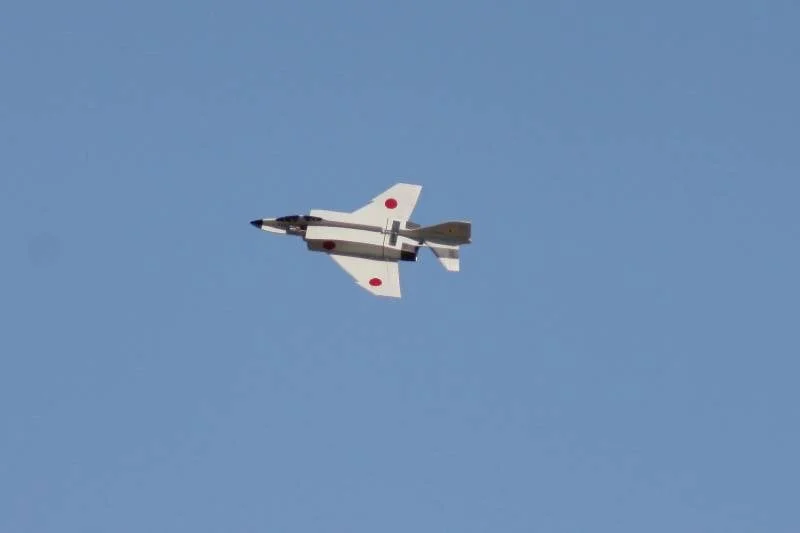

It flies very good even in windy conditions and inverted is a breeze.

SPECIFICATIONS

Wing span = 71cm (~28") | Length = 106cm (~42")

SET UP

Weight (painted) = 380g (~13.4oz) | Weight (painted with 1350mAh battery) = 510g (~18oz) | Weight (painted with 2100mAh battery) = 570g (~20.1oz) | Prop = 6x4 | Motor = 2000kv | ESC = 25A min | Battery = 1350 or 2170mAh 3s1p Li-Po | Aileron throw = +/- 15 degrees | Elevon (Elevator) throw = +/- 25 degrees | Static thrust = minimum 650g (~23oz) | Expo = 40% | COG = 12cm to 12.5cm from wing break

BUILD THREAD

RC GROUPS BUILD THREAD

KIT AVAILABLE

6MMFLYRC.COM
