YF-23 Black Widow NC

0.00

YF-23 Black Widow NC

0.00

Designed by Nick Cara

If you download free RC airplane plans and build the YF-23, please consider sending the designer a donation for all of his hard work and inspiration!

PayPal | nicknac6@gmail.com

Suggested Donation: $10.00

NOTE FROM THE DESIGNER

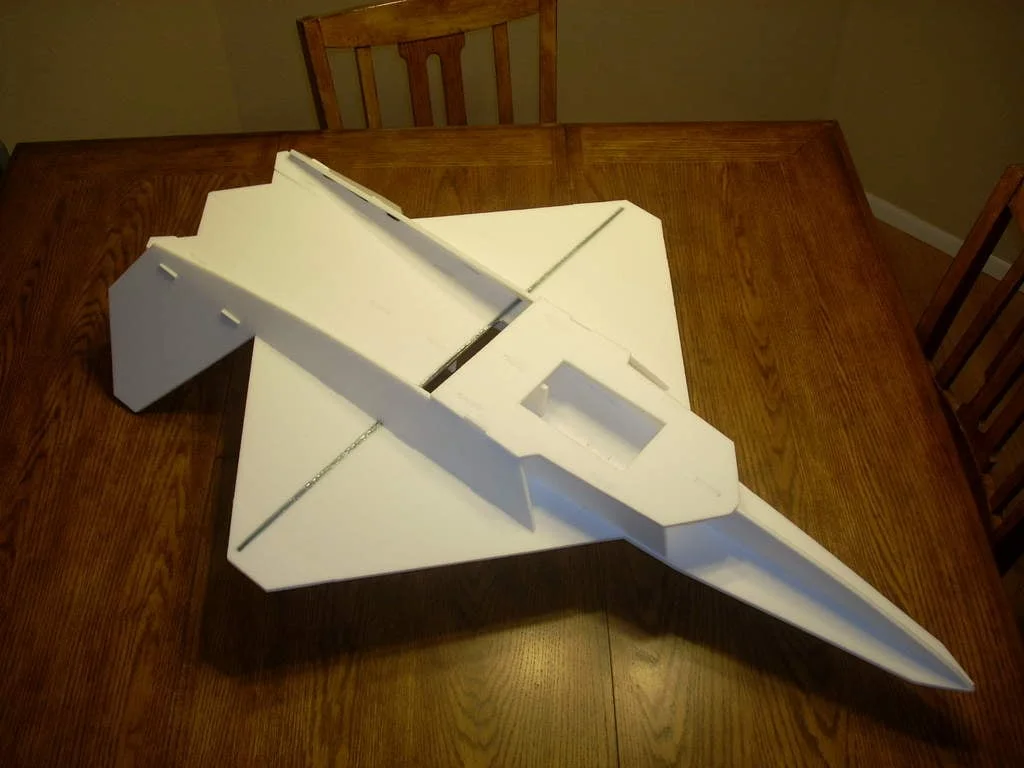

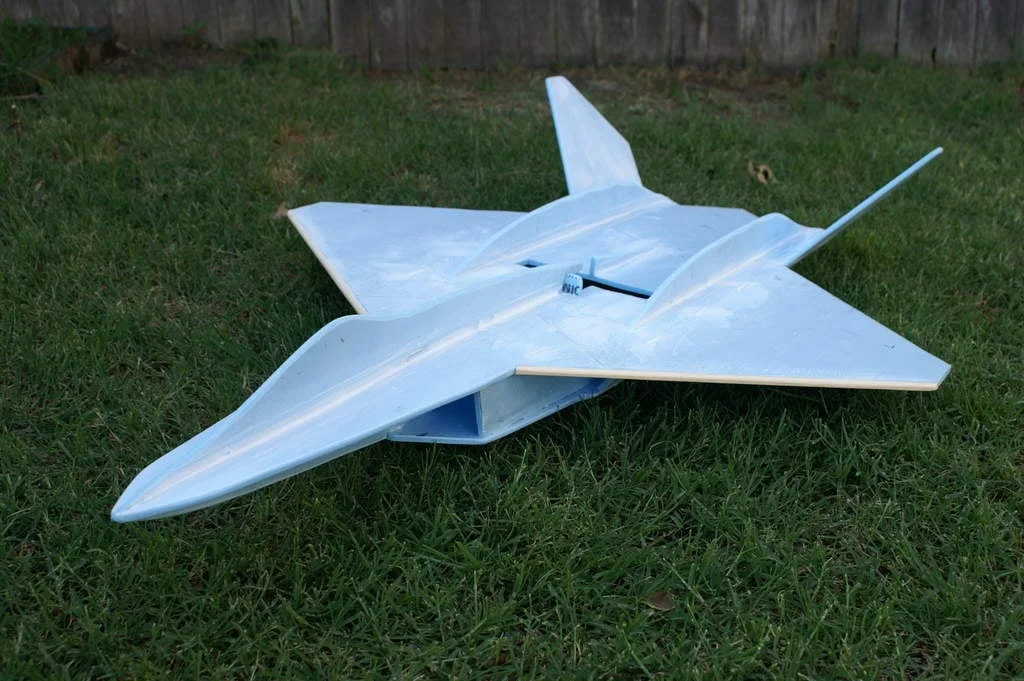

Here is my Easybuild RC version of the Northrop YF-23 Black Widow II.

It has a mid-mounted motor, electronics and battery are accessible via an access door underneath.
It is built from 6mm Depron foam, held together with hot glue. I only use Epoxy for the carbon rods.
Use just two servos to control all surfaces but you could use a third for separate elevator (V1.04).

Both 100% and 70% plans are provided along with decals.
The full size plans will also allow for the use of the "Power Pod", which is used on several of my other designs.

SPECIFICATIONS

YF-23 Black Widow II - EASYBUILD | Depron = 6mm | Wing span = 72cm (28") | Length = 110cm (43")

SETUP: Weight (painted) = TBA | Weight (painted and with 1350 battery) = TBA | Static thrust = 650g | Prop = 6x4 | Motor = 2000kv | ESC = 25A minimum | Battery = 1350mAh 3s1p 25C Li-Po | Elevon throw = +/- 25 degrees | Expo = 40% | COG = 17 from wing break

BUILD THREAD

RC GROUPS BUILD THREAD
